1992 Rodeo TFS55

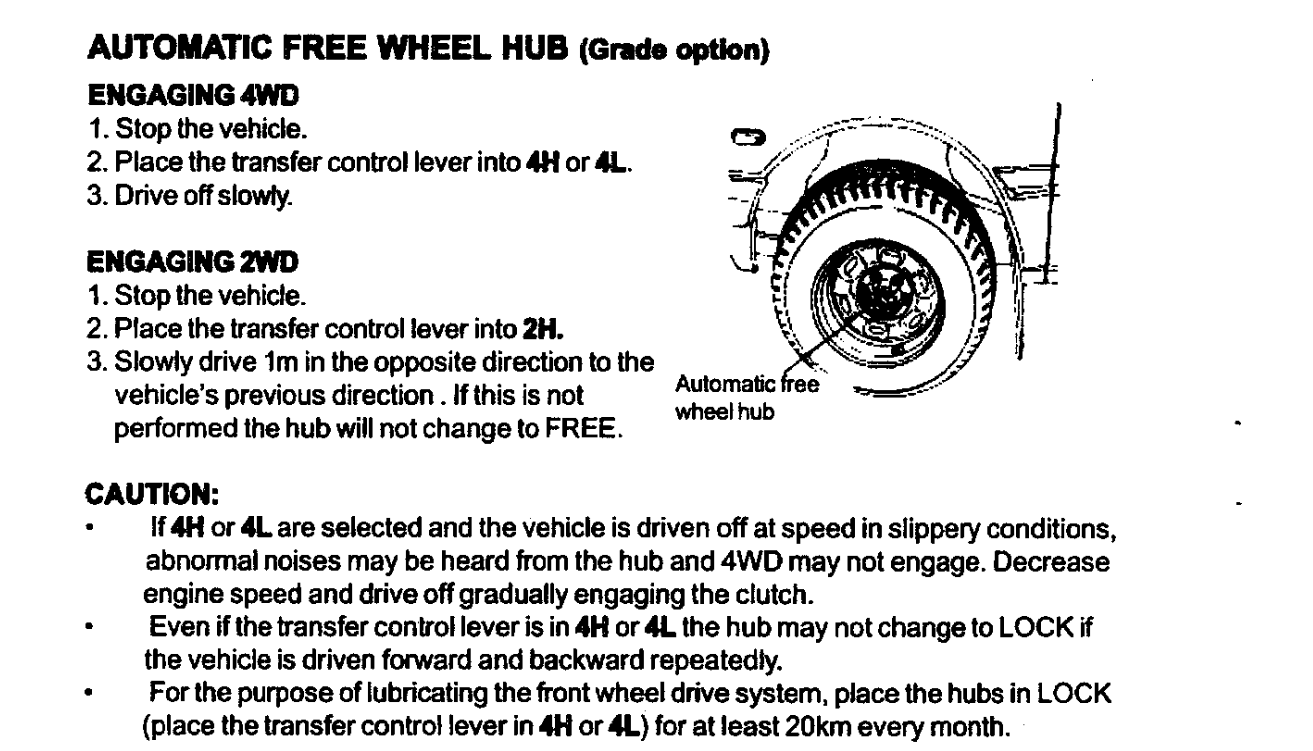

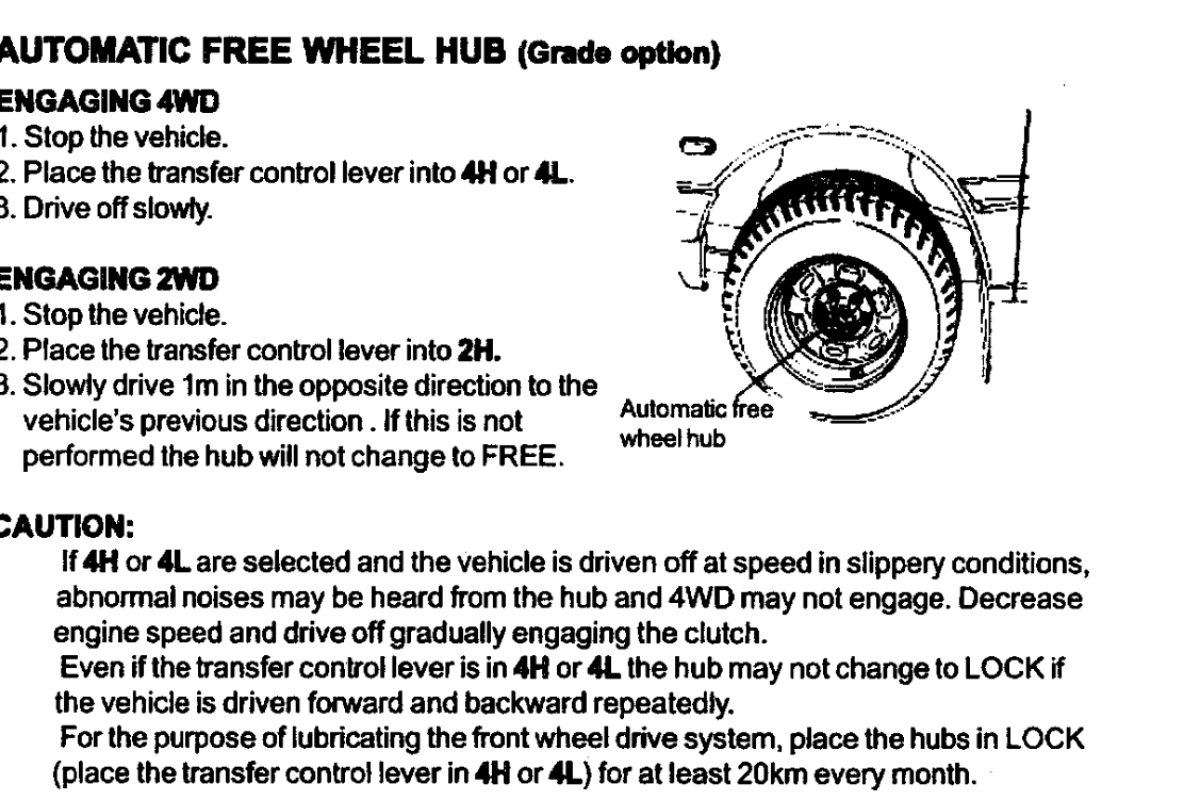

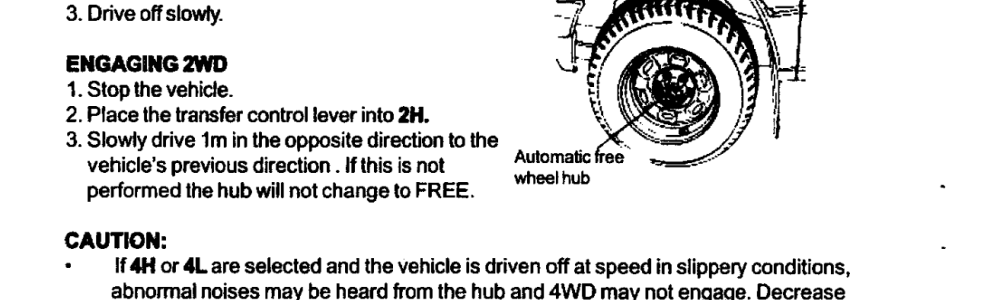

Important 4WD Info 4wd_notes

Wheels: replaced the mags fitted from Japan with steel wheels as they were under rated for axle load. Dynamic 15x7 6x139.7 10P CB111 Black Steel Rim 15 x 7 PCD 6/139.7 Offset +10. 6 stud fitment Maximum load 1150kg. Tires: 5 x GT Radial Adventuro ATII LT235/75R15 116/113S Spare is the same. It just fitted under the cover (sits out a bit further, but ok) with some trimming on the rear bumper and adjusting of the cover lock nuts.

Brake Booster: reconditioned as unable to locate a matching one. Master Cylinder: replaced (for me with trade contacts, it was about the same price)

Now using semi metallic front disc pads

Rear Brake Drum 254mm diameter

Disc Brake Rotor 257mm diameter

Disk pads: now using Rear shock I have fitted Monroe 331048MM, replacing a Repco house branded item.

Vacuum system The rubber tubing will perish with age. I checked and replaced all the failing ones, which made all sorts of things work properly again.

Rear Heater: The control valve in the engine bay can seize up. I removed it and gave it a good clean, and manually moved the lever until it freed up. No further issues yet.
